VT-HW Smart Home Wallbox
A compact Level 2 / Mode 3 wallbox for homes and small businesses — Type 2 socket or tethered cable in IEC versions, Type 1 cable in North American versions.
- IEC · 1- or 3-phase
- 3.7–22 kWIEC · 1- or 3-phase
- North America · 208–240 V
- 32 / 40 / 48 ANorth America · 208–240 V
- Socket / cable versions
- IP55 – IP65Socket / cable versions
- and OCPP 1.6J
- OCPP 2.0.1and OCPP 1.6J
- Dynamic load balancing and solar surplus charging
- Start by RFID, app or plug & charge
- Type A 30 mA + 6 mA DC fault protection
- Wall or pedestal mounting
Best for: Homes, apartment car parks, small offices and installers who need one wallbox for both IEC and North American markets.
Certifications: IEC versions: CE, UKCA, TÜV · North American versions: ETL, ENERGY STAR. Certificates for the exact model on request.
Warranty: 2 years
A wallbox that fits both sides of the Atlantic
The VT-HW is the home and light-commercial wallbox in the VULTAE range. The same compact housing — 200 × 330 mm — is built in two electrical families:

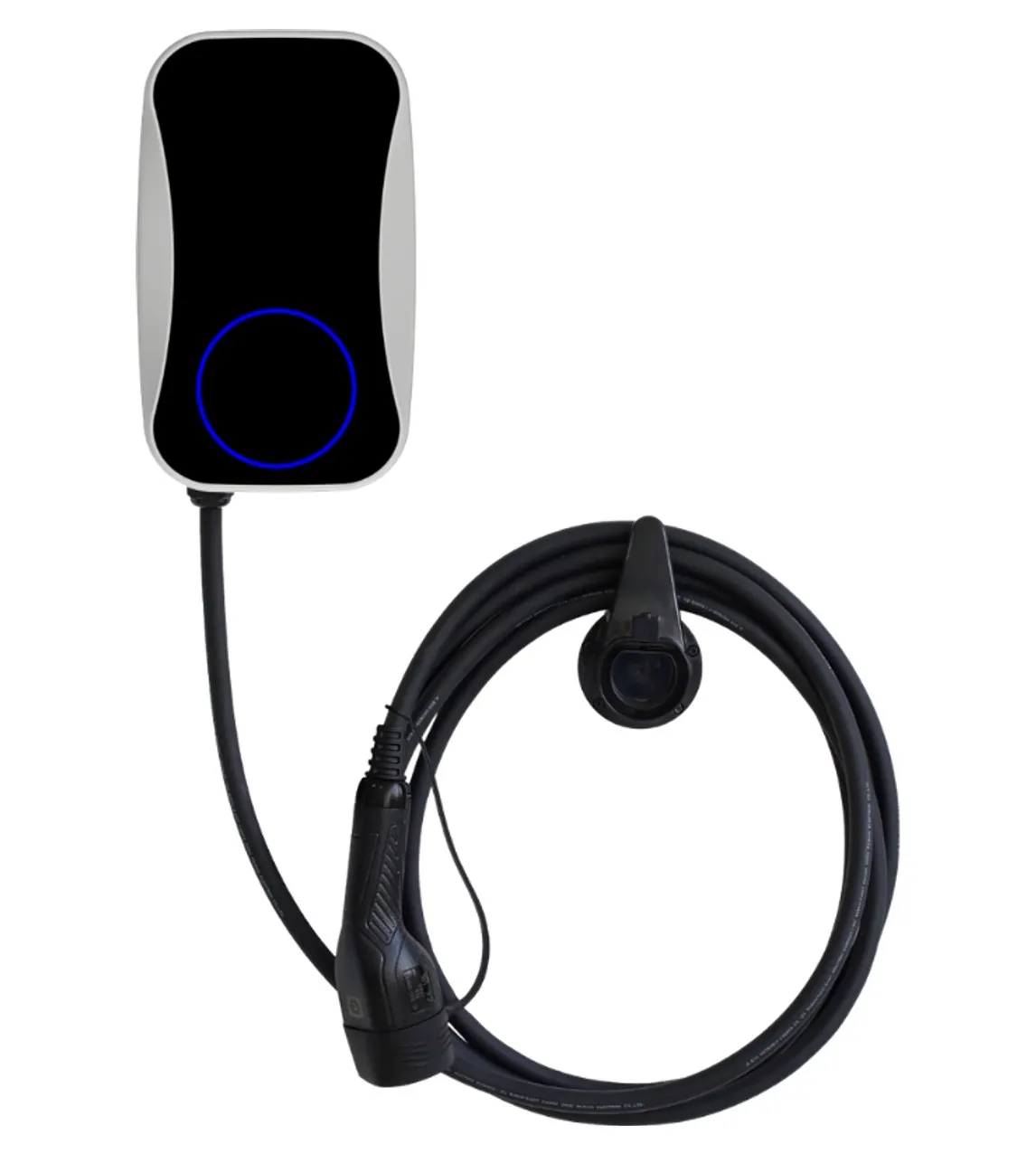

- IEC versions for Europe, the UK, Asia-Pacific and the Middle East: single-phase 3.7 or 7.4 kW and three-phase 11 or 22 kW, with a Type 2 socket or a tethered Type 2 cable.
- North American versions for the USA and Canada: 32, 40 or 48 A on a 208–240 V split-phase supply, with a Type 1 (SAE J1772) cable.
For distributors this means one product family to stock and support across markets.
Smart energy management built in
Most home supplies were not designed for an extra 7 to 22 kW load. The VT-HW reads the building load through a CT sensor and adjusts its own current in real time, so the main breaker stays on while the car charges. With a PV system, it can follow the solar surplus instead of drawing from the grid.
For operators as well as homeowners
Every networked VT-HW supports OCPP 1.6J and OCPP 2.0.1 over Ethernet, Wi-Fi or 4G. Operators can connect it to the charging management system they already use; homeowners can use the app instead. Drivers start a session by RFID card, app or plug & charge.
Choosing a model
| If you need… | Choose |
|---|---|
| Single-phase home charging, 32 A supply | VT-HW7S or VT-HW7C |
| Three-phase charging at full 22 kW | VT-HW22S or VT-HW22C |
| Public or shared parking (drivers bring their own cable) | S (socket) version |
| Home charging with the cable always ready | C (tethered) version |
| USA or Canada | VT-HW7-NA, VT-HW9-NA or VT-HW11-NA |
Technical specifications
VT-HW Smart Home Wallbox — 3.7–22 kW · up to 48 A. Configurations can be customised for OEM orders.
IEC versions (Europe, UK, Asia-Pacific, Middle East)
S = Type 2 socket (optional shutter), C = tethered Type 2 cable.
| Model | VT-HW3S / C | VT-HW7S / C | VT-HW11S / C | VT-HW22S / C |
|---|---|---|---|---|
| Supply | 1P+N+PE | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Input voltage | AC 220–240 V | AC 220–240 V | AC 380–415 V | AC 380–415 V |
| Frequency | 50/60 Hz | |||
| Rated current | 16 A | 32 A | 16 A | 32 A |
| Rated power | 3.7 kW | 7.4 kW | 11 kW | 22 kW |
| Vehicle connector | Type 2 (IEC 62196-2) | |||
| Incoming cable terminals | 3 × 10 mm² | 3 × 10 mm² | 5 × 10 mm² | 5 × 10 mm² |
| Recommended upstream breaker | 20 A | 36 A | 20 A | 36 A |
| Residual current protection | Type A 30 mA + 6 mA DC | |||
| Ingress protection | IP55 (S) / IP65 (C) | |||
| Dimensions (W × H × D) | 200 × 330 × 109–140 mm | |||
North American versions (USA, Canada)
| Model | VT-HW7-NA | VT-HW9-NA | VT-HW11-NA |
|---|---|---|---|
| Supply | L1 + L2 + PE | ||
| Input voltage | AC 208–240 V | ||
| Rated current | 32 A | 40 A | 48 A |
| Rated power at 240 V | 7.7 kW | 9.6 kW | 11.5 kW |
| Vehicle connector | Type 1 (SAE J1772) | ||
| Ground fault protection | CCID 20 mA | ||
| Enclosure | Type 3 | ||
| Dimensions (W × H × D) | 200 × 330 × 109–122 mm | ||
All models
- Charging mode
- Mode 3 (IEC) · Level 2 (North America)
- Communication
- Wi-Fi · 4G · Ethernet (options)
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Start modes
- RFID · app · plug & charge
- Display
- LED status ring; LCD screen optional
- Operating temperature
- −25 °C to +50 °C
- Mounting
- Wall or floor stand
Need a datasheet or a different configuration? Ask our engineers →
Features
Dynamic load balancing
A CT sensor on the main supply reads the household load; the wallbox lowers its current so the main breaker does not trip.
Solar surplus charging
Charging current follows the energy available from the PV system to use more self-generated power.
Group management
Several wallboxes can share one supply limit without an OCPP platform.
Home app or OCPP
A built-in Wi-Fi app module for homeowners; OCPP 1.6J or 2.0.1 for operators — switch between them on site.
Built-in protection
Over-current, over/under-voltage, over-temperature, surge and ground monitoring as standard.
Custom shell and colours
Shell and front-panel colours can be changed for OEM projects.
Installation requirements
- Dedicated circuit with the breaker size listed for each model

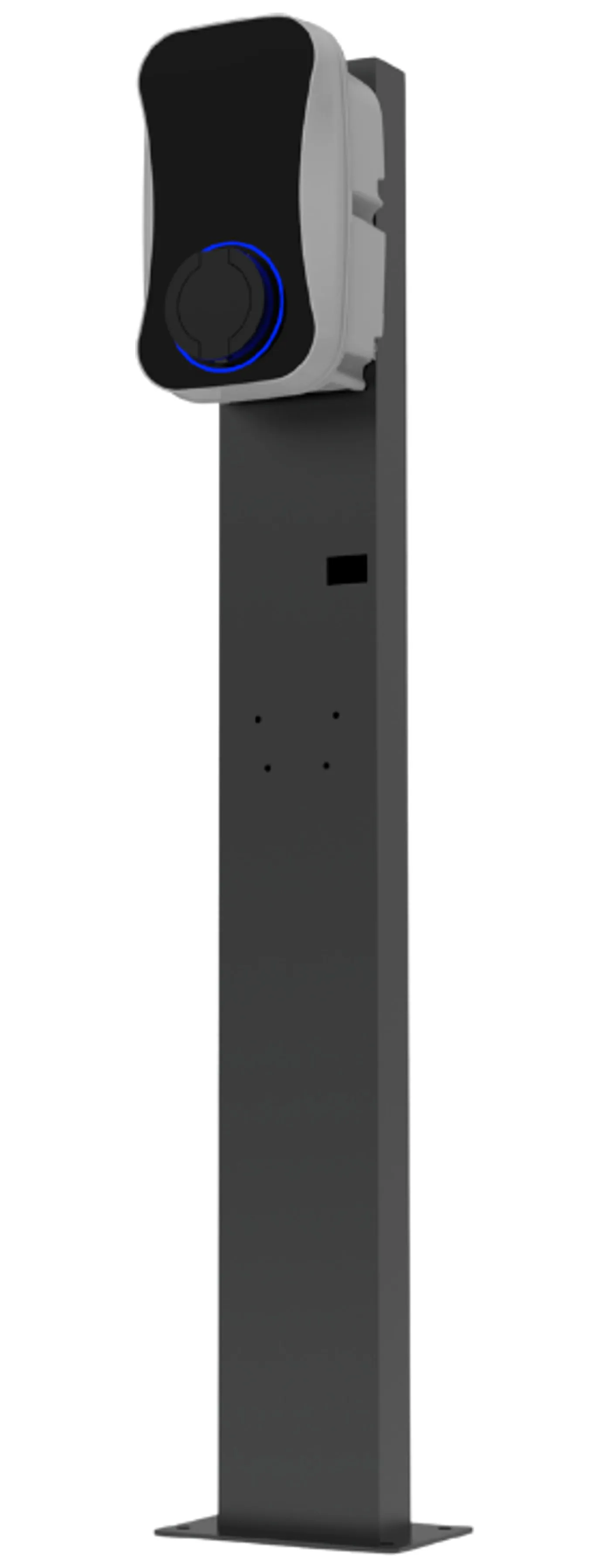

- Wall mounting as standard; floor stand available (see Accessories)
- PEN fault protection available for UK installations
- Commissioning by app; OCPP backend set up over Ethernet, Wi-Fi or 4G
Options
- LCD screen
- RFID card reader
- 4G module
- PEN fault protection (UK)
- Tuya app control
- Custom shell colour and logo (OEM)
Frequently asked questions
Is the VT-HW available with a Type 1 connector?
Yes. North American versions (VT-HW7-NA, VT-HW9-NA, VT-HW11-NA) use a Type 1 (SAE J1772) cable at 32, 40 or 48 A on a 208–240 V split-phase supply. IEC versions use Type 2.
What is the difference between the S and C versions?
S versions have a Type 2 socket, so drivers use their own cable; C versions have a tethered Type 2 cable. Socket versions are rated IP55 and cable versions IP65.
Can the wallbox avoid tripping the main breaker?
Yes. With the CT sensor installed on the main supply, dynamic load balancing reduces the charging current whenever the rest of the building draws more power.
Which backend protocols are supported?
OCPP 1.6J and OCPP 2.0.1 over Ethernet, Wi-Fi or 4G. A home app mode is also available for single-family installations.
Which certifications apply?
IEC versions are supplied with CE, UKCA and TÜV certification; North American versions with ETL and ENERGY STAR. We send the certificates for the exact model you order.
Can we sell the VT-HW under our own brand?
Yes. Shell colour, logo, screen interface, app branding and packaging can be customised. See our OEM / ODM page for the process.
Get a quote for the VT-HW Smart Home Wallbox
Tell us your market, the model or power you need, the quantity and any branding requirements. An engineer replies with specifications and pricing.
