VT-CP Dual-Port AC Pedestal
A floor-standing AC charging post that charges two vehicles at once — built for car parks, hotels, workplaces and retail sites.
- Two charging points
- 2 × 3.7–22 kWTwo charging points
- Socket or cable
- Type 2Socket or cable
- Outdoor
- IP55 · IK10Outdoor
- and OCPP 1.6J
- OCPP 2.0.1and OCPP 1.6J
- Payment terminal option
- MID-certified meter on request
- Two LCD displays
- Removable rear cover for maintenance
Best for: Car parks, hotels, offices, retail and residential complexes that need two charging points from one foundation.
Certifications: IEC versions: CE, UKCA, TÜV. Certificates for the exact model on request.
Warranty: 2 years

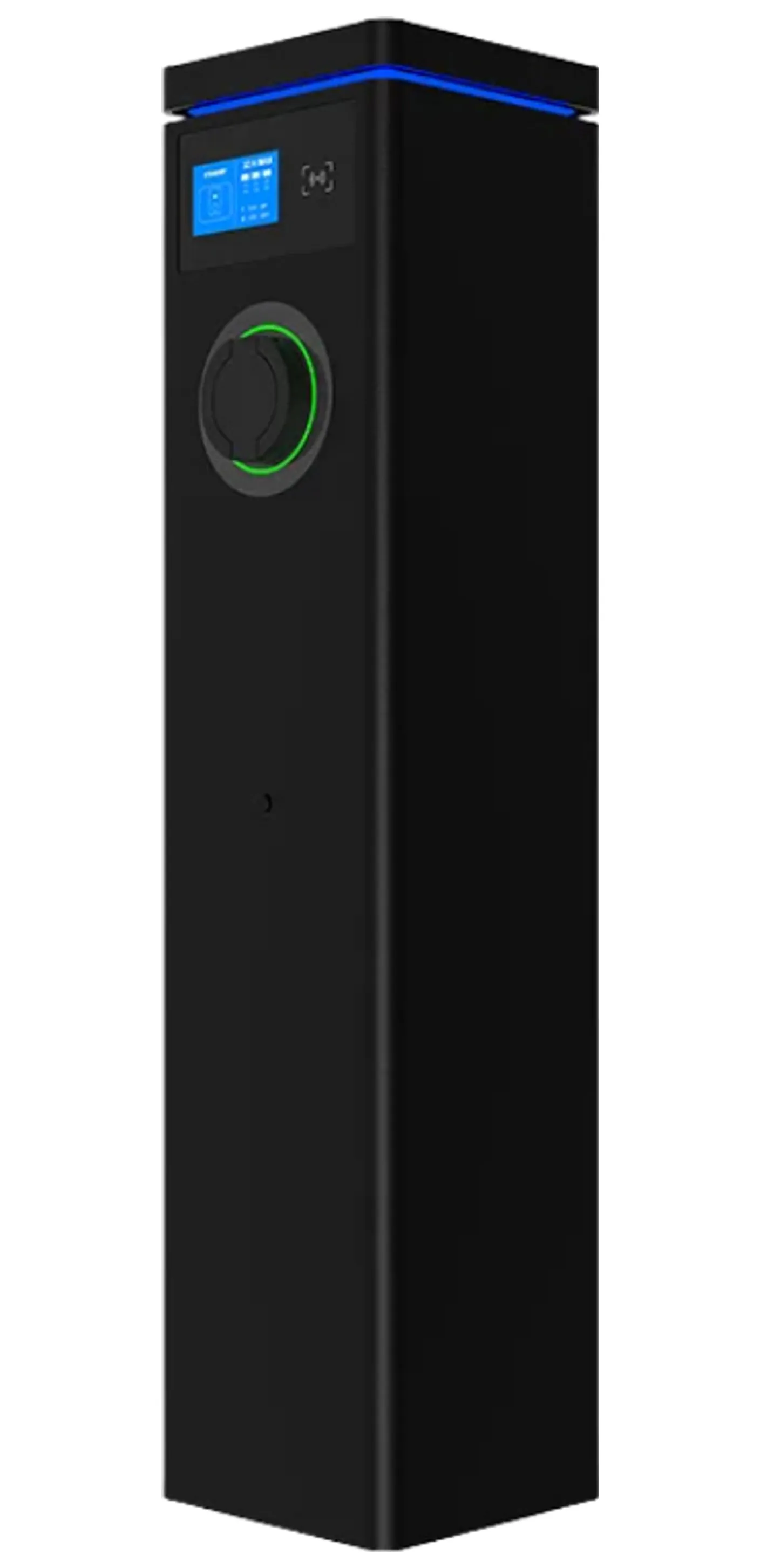

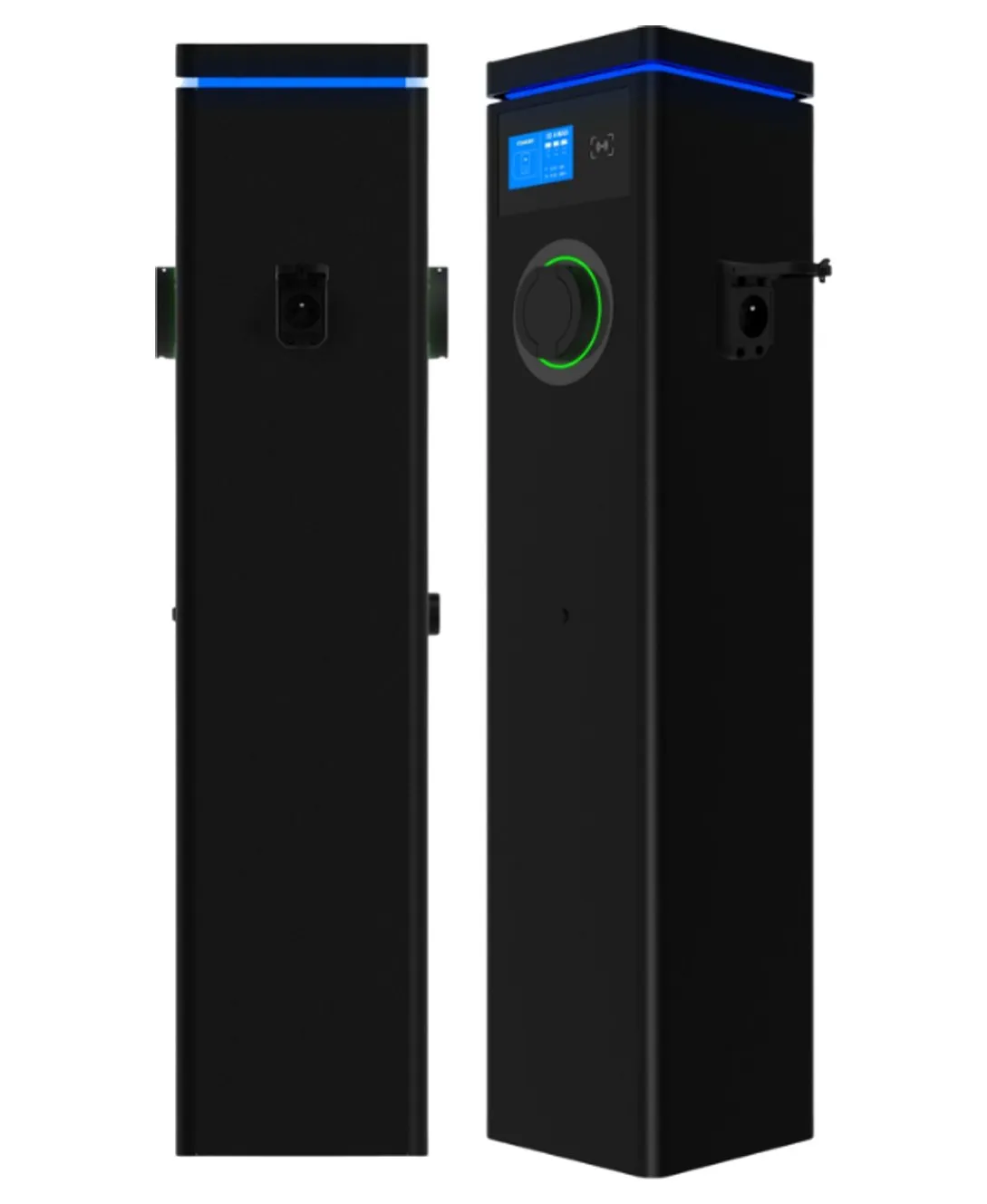

Two charging points, one post
The VT-CP puts two Type 2 charging points on a slim 260 × 260 mm pedestal. Each point has its own LCD screen and status light, so two drivers can charge at the same time without confusion. For site owners, one pedestal means one foundation and one cable run instead of two.
Built for public and shared parking
Car parks, hotels, offices and shopping centres need chargers that survive weather and the occasional bumper. The VT-CP housing is rated IP55 and IK10. A card payment terminal, QR-code payment and a MID-certified meter are available for sites that charge drivers per session or per kWh.
Which power level?
| Site supply | Recommended model | Power per point |
|---|---|---|
| Single-phase, 2 × 16 A | VT-CP3-2 | 3.7 kW |
| Single-phase, 2 × 32 A | VT-CP7-2 | 7.4 kW |
| Three-phase, 2 × 16 A | VT-CP11-2 | 11 kW |
| Three-phase, 2 × 32 A | VT-CP22-2 | 22 kW |
Where the supply cannot carry every pedestal at full power, load management shares the available current across the group.
Technical specifications
VT-CP Dual-Port AC Pedestal — 2 × 3.7–22 kW. Configurations can be customised for OEM orders.
IEC versions
Current per charging point is adjustable. Add S (socket) or C (cable) to the model name.
| Model | VT-CP3-2 | VT-CP7-2 | VT-CP11-2 | VT-CP22-2 |
|---|---|---|---|---|
| Supply | 1P+N+PE | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Input voltage | AC 220–240 V | AC 220–240 V | AC 380–415 V | AC 380–415 V |
| Frequency | 50/60 Hz | |||
| Rated current | 2 × 16 A | 2 × 32 A | 2 × 16 A | 2 × 32 A |
| Rated power | 2 × 3.7 kW | 2 × 7.4 kW | 2 × 11 kW | 2 × 22 kW |
All models
- Charging points
- 2 (simultaneous)
- Vehicle connector
- Type 2 (IEC 62196-2) socket or tethered cable
- Ingress / impact protection
- IP55 · IK10
- Display
- 2 × LCD + LED status
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Operating temperature
- −25 °C to +50 °C
- Dimensions (W × D × H)
- 260 × 260 × 1140 mm
Need a datasheet or a different configuration? Ask our engineers →
Features
Two cars
Two charging points on one post halve the number of foundations, cable runs and permits compared with single chargers.
Payment ready
Prepared for a card payment terminal, plus QR-code payment through the app, for pay-per-use sites.
Billing-grade metering
A MID-certified energy meter can be fitted where billing accuracy is required.
Built for public spaces
IP55 and IK10 housing for outdoor sites and accidental knocks from vehicles.
Easy service
A removable rear cover gives direct access for inspection and maintenance.
Operator control
OCPP 1.6J / 2.0.1 over Ethernet, Wi-Fi or 4G, with RFID or app authorisation.
Installation requirements
- Concrete foundation with anchor bolts; cable entry from below
- Three-phase supply sized for both charging points (up to 2 × 32 A)
- Load management can share a limited site supply across several pedestals
- PEN fault protection available for UK installations
Options
- Card payment terminal
- MID-certified meter
- RFID card reader
- 4G module
- PEN fault protection (UK)
- Custom colours and logo (OEM)
Frequently asked questions
Can both charging points run at full power at the same time?
Yes, provided the supply is sized for it — for example 2 × 32 A three-phase for the VT-CP22-2. On a smaller supply, load management shares the available current between the two points.
Can the pedestal take card payments?
A card payment terminal is available as an option, and drivers can also pay by QR code through the app.
Is a MID meter available?
Yes, a MID-certified meter can be fitted on request for sites that bill drivers by energy.
Which certifications apply?
The VT-CP is supplied in IEC versions with CE, UKCA and TÜV certification. We send the certificates for the exact model you order.
What foundation is needed?
A concrete foundation with anchor bolts and an underground cable entry. Ask our engineers for the foundation dimensions for your model.
Get a quote for the VT-CP Dual-Port AC Pedestal
Tell us your market, the model or power you need, the quantity and any branding requirements. An engineer replies with specifications and pricing.
