VT-DF series
DC Fast Charger
A floor-standing dual-connector fast charger with dynamic power sharing — for public hubs, highways and fleets.
- 60–360 kW
- CCS1 · CCS2 · NACS · CHAdeMO
- IEC · North America
Solutions · Charge Point Operators
EV charging hardware for charge point operators
Operators earn money when chargers are available and easy to pay at. We supply OCPP-ready AC and DC hardware that connects to the charging management system you already run.
What matters
What charge point operators need from charging hardware
Open backend
OCPP 1.6J and OCPP 2.0.1 over Ethernet, Wi-Fi or 4G, so the hardware works with your existing CSMS.
Revenue per bay
Dual-connector DC units with dynamic power sharing, and dual-port AC posts, serve two vehicles from one foundation.
Payment options
RFID, QR code and POS card payment; optional 21-inch advertising screen on DC fast chargers.
Billing accuracy
Class 0.5 metering on DC chargers; MID-certified meters available on dual-port AC chargers.
Recommended
Chargers we recommend

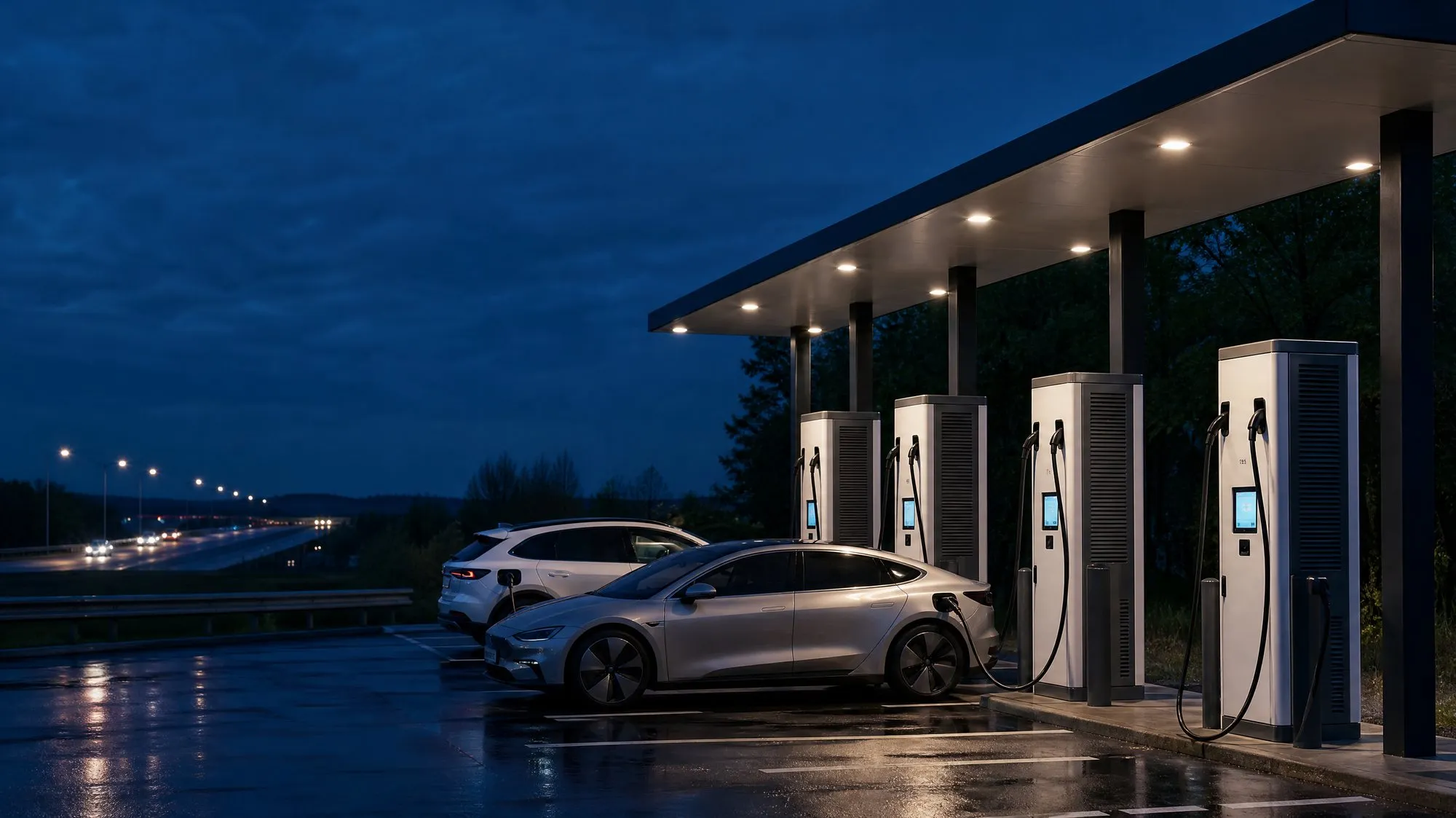

Why: Main fast charger for public hubs: 60–300 kW (IEC) or up to 360 kW (North America), two connectors.
VT-DFC series
Compact DC Charger
Fast-charger power in a 700 × 500 mm footprint — for sites where every parking bay counts.
- 120 / 180 kW
- CCS2 · CHAdeMO
- IEC
Why: 120 or 180 kW where space between bays is limited, with an optional advertising screen.
VT-CP series
Dual-Port AC Pedestal
A floor-standing post that charges two vehicles at once — built for car parks, hotels and workplaces.
- 2 × 3.7–22 kW
- Type 2
- IEC
Why: Destination AC charging for car parks, two vehicles per post.
Typical hardware choice by site type
| Site | Typical stay | Hardware |
|---|---|---|
| Highway service area | 15–30 min | VT-DF 240–360 kW |
| Urban hub / fuel station | 20–45 min | VT-DF 120–180 kW or VT-DFC |
| Retail car park | 30–90 min | VT-DFC120 or VT-DW 40–60 kW |
| Hotel, office, residential | 2 h + | VT-CP / VT-CW dual-port AC |
Guidance only — the right choice depends on your vehicles, dwell times and supply. Try the charging calculator →
Questions from charge point operators
Will your chargers work with our CSMS?
Our networked chargers support OCPP 1.6J and OCPP 2.0.1. Share your CSMS details with your inquiry and we confirm the configuration.
Can drivers pay by card?
Yes. POS card payment is available on DC chargers, and a card terminal option on dual-port AC chargers, alongside RFID and QR-code payment.
Do you supply both IEC and North American hardware?
Yes. The VT-HW wallbox and the VT-DF fast charger are built in both IEC and North American versions.
Tell us what you’re building
Send your market, charger type, power and quantity — our engineers reply with matching models, specifications and pricing.
