DC Fast Chargers · Level 3 · Mode 4

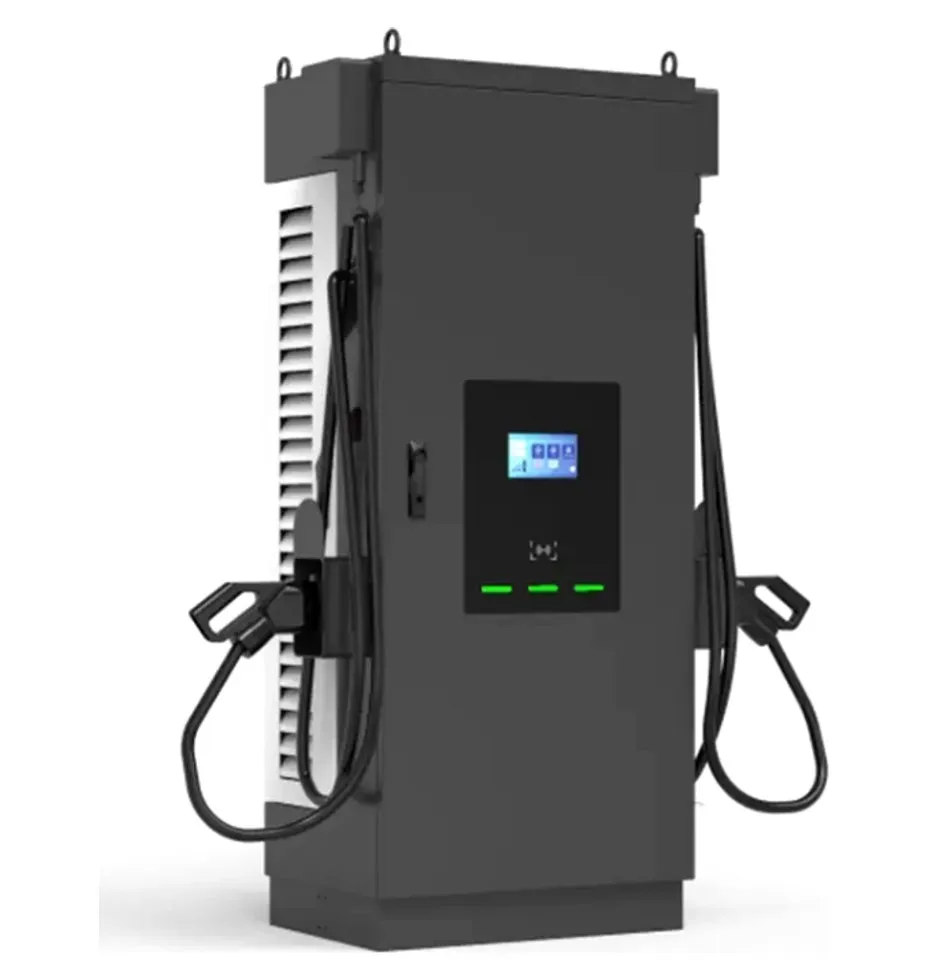

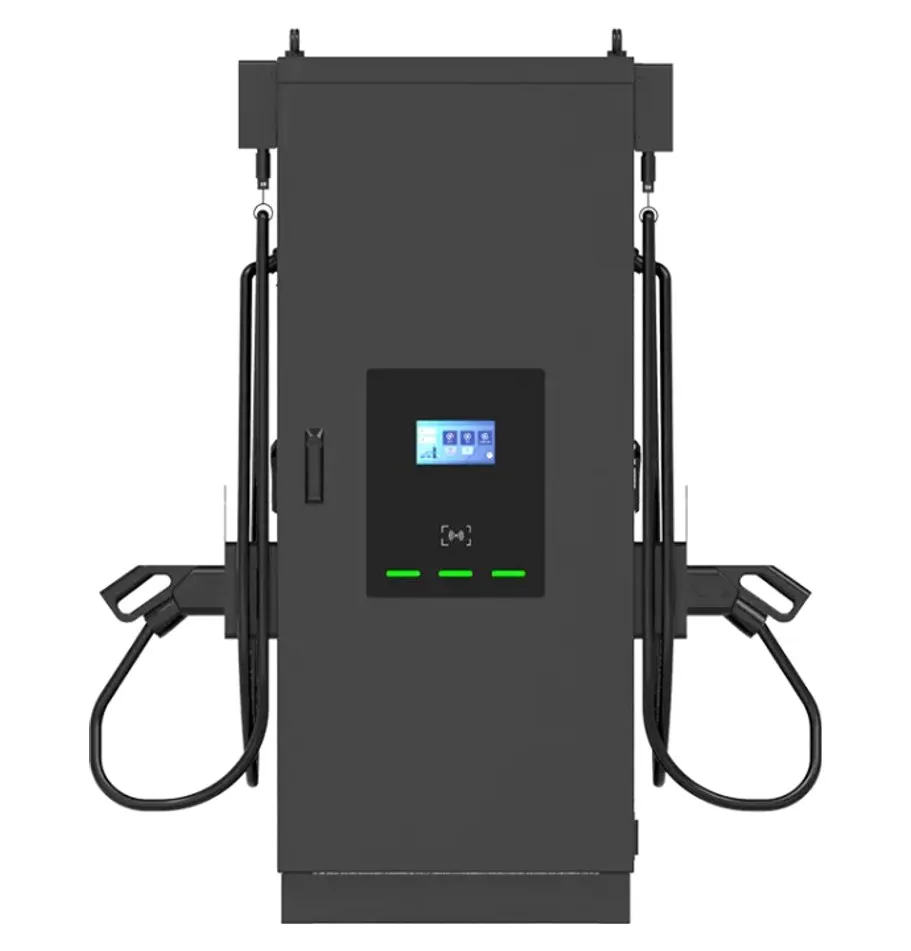

VT-DFC Compact DC Charger
Fast-charger power in a 700 × 500 mm footprint — 120 or 180 kW with two connectors, for sites where every parking bay counts.
- Output power
- 120 / 180 kWOutput power
- CCS2 + CCS2 or CHAdeMO
- Dual connectorCCS2 + CCS2 or CHAdeMO
- Footprint, 1700 mm high
- 700 × 500 mmFootprint, 1700 mm high
- Outdoor
- IP54 · IK10Outdoor
- Optional 21" advertising screen
- 5 m cables, optional cable hanger
- 7" touchscreen, RFID and QR code
- OCPP 1.6J / 2.0.1
Best for: Urban car parks, retail sites and fuel stations with little space between bays.
Certifications: IEC versions: CE, UKCA, TÜV. Certificates for the exact model on request.
Warranty: 2 years
When space is the constraint
In city car parks and fuel-station forecourts, a full-size fast-charging cabinet can cost a parking bay. The VT-DFC delivers 120 or 180 kW from a 700 × 500 mm footprint, with two 5 m cables that reach bays on either side.
Advertising that pays back
The optional 21-inch screen lets site owners sell advertising while drivers wait. The 7-inch touchscreen for charging stays separate, so the advertising never gets in the way of starting a session.
120 or 180 kW?
| Situation | Model |
|---|---|
| Retail and city sites, typical stays of 30–60 minutes | VT-DFC120 |
| Busy forecourts and taxi ranks | VT-DFC180 |
Technical specifications
VT-DFC Compact DC Charger — 120 / 180 kW. Configurations can be customised for OEM orders.
Models
| Model | VT-DFC120 | VT-DFC180 |
|---|---|---|
| Max. output power | 120 kW | 180 kW |
| Input current per phase | 186 A | 279 A |
All models
- Input
- 230 / 400 V AC, 50/60 Hz
- Output voltage
- 150–1000 V DC
- Max. output current
- CCS2 up to 200 A · CHAdeMO 150 A
- Connectors
- CCS2 + CCS2 or CCS2 + CHAdeMO
- Efficiency
- ≥ 95.2 % at full load
- Cable length
- 5 m (custom lengths available)
- Ingress / impact protection
- IP54 · IK10
- Operating temperature
- −20 °C to +55 °C
- Housing
- Sprayed galvanized steel
- Interface
- 7" colour touchscreen; 21" advertising screen optional
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Dimensions (W × D × H)
- 700 × 500 × 1700 mm
Need a datasheet or a different configuration? Ask our engineers →
Features
Small footprint
At 700 × 500 mm it fits between bays where a full-size cabinet would cost a parking space.
Screen revenue
The optional 21-inch screen shows advertising while drivers charge.
Two connectors
CCS2 + CCS2, or CCS2 + CHAdeMO for mixed fleets.
Operator-ready
OCPP 1.6J or 2.0.1, RFID, QR code and POS card payment options.
Installation requirements
- Concrete foundation; cable entry from below
- Three-phase 400 V supply: up to 186 A (120 kW) or 279 A (180 kW) per phase
- Optional cable hanger keeps cables off the ground
Options
- 21" advertising screen
- Cable hanger
- POS card payment
- 22 kW AC output
- 4G and Wi-Fi modules
- Custom colours and logo (OEM)
Frequently asked questions
How does the VT-DFC differ from the VT-DF?
The VT-DFC packs 120 or 180 kW into a 700 × 500 mm footprint with 5 m cables. The VT-DF is a larger 850 × 840 mm cabinet that goes from 60 up to 300 kW (IEC) or 360 kW (North America).
Is the advertising screen standard?
No, the 21-inch advertising screen is an option; the 7-inch touchscreen for drivers is standard.
Which certifications apply?
The VT-DFC is supplied in IEC versions with CE, UKCA and TÜV certification. We send the certificates for the exact model you order.
Get a quote for the VT-DFC Compact DC Charger
Tell us your market, the model or power you need, the quantity and any branding requirements. An engineer replies with specifications and pricing.
