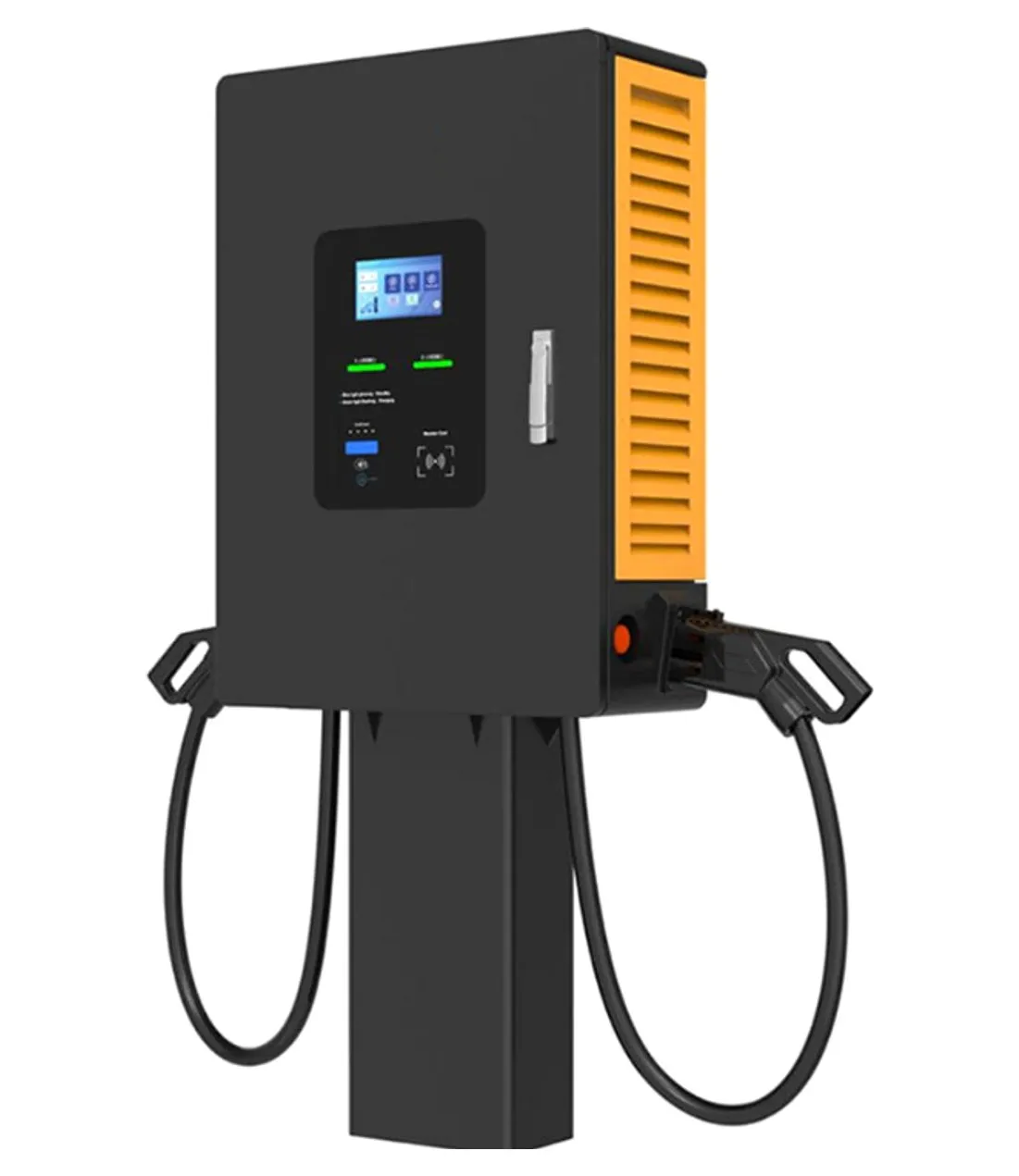

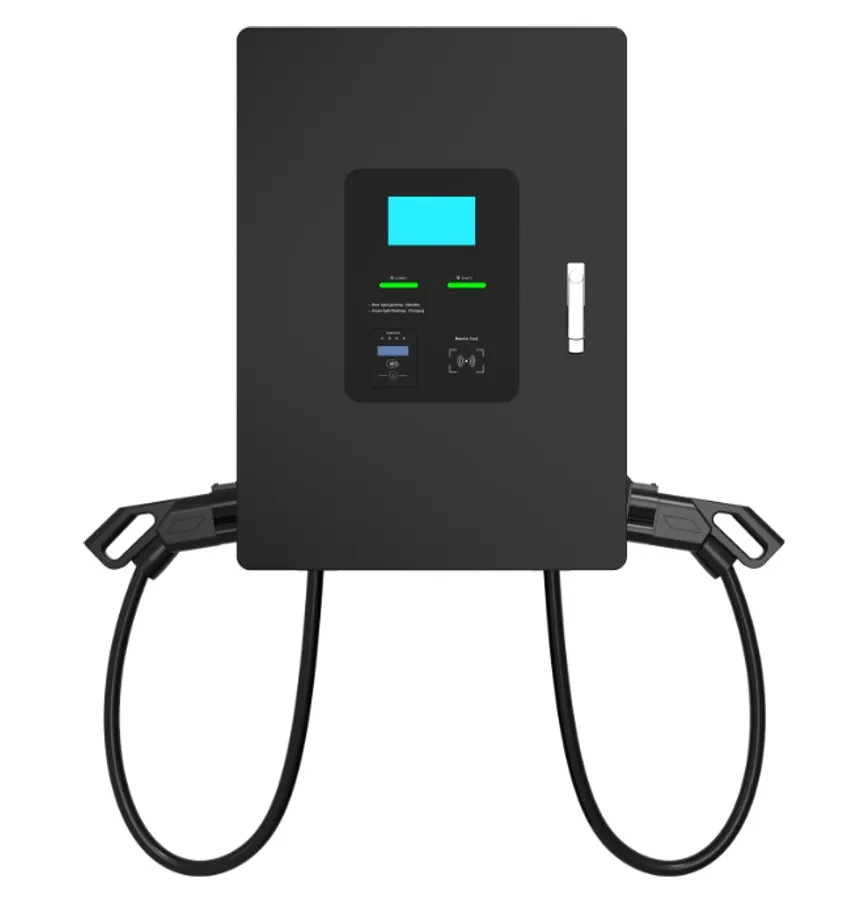

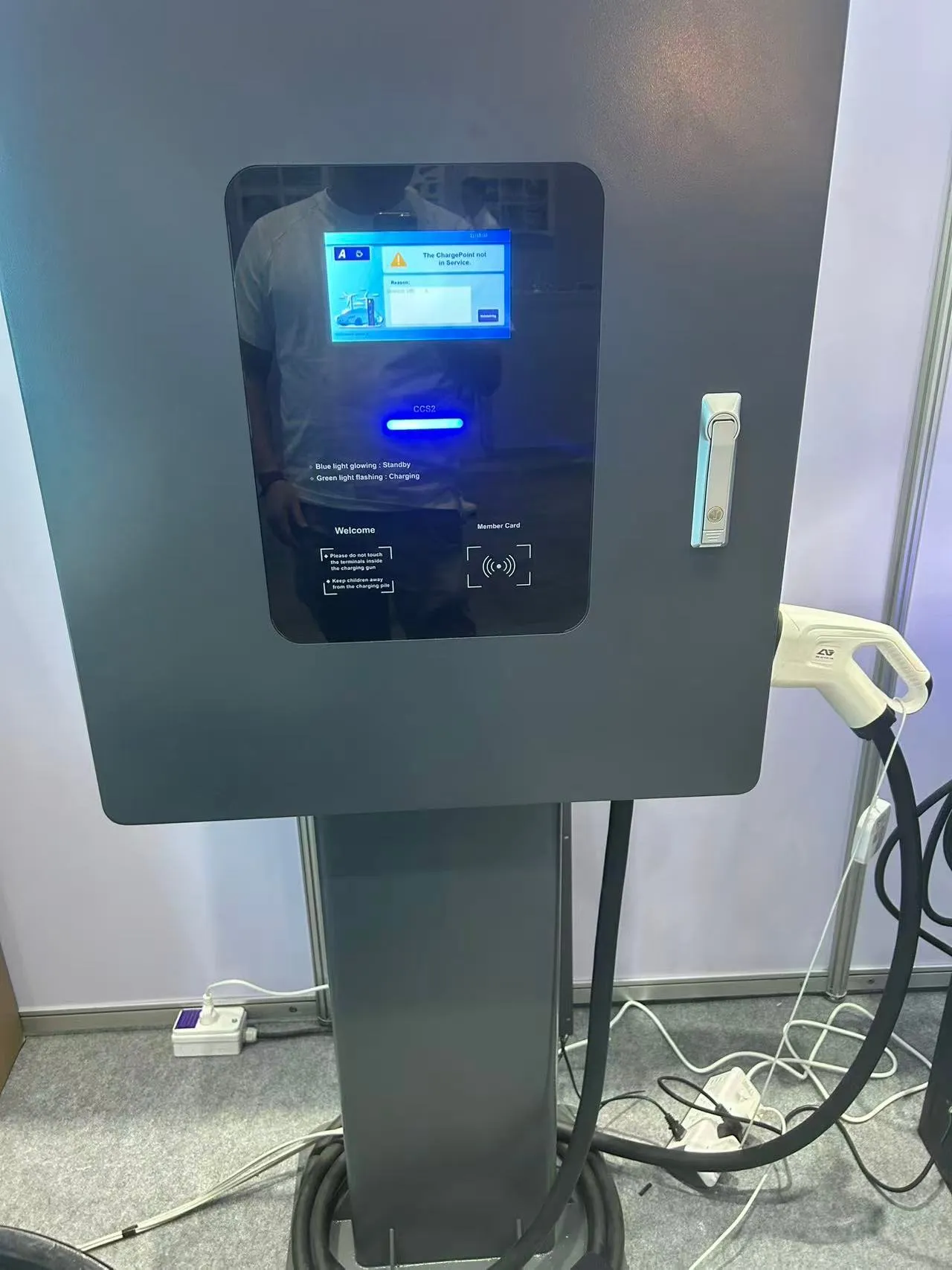

VT-DW DC Wallbox
Compact DC fast charging for walls and pedestals — 20 to 60 kW for dealerships, retail sites, hotels and depots where space and supply are limited.
- Output power
- 20–60 kWOutput power
- Single or dual connector
- CCS1 · CCS2Single or dual connector
- DC output range
- 200–1000 VDC output range
- Outdoor
- IP54 · IK10Outdoor
- 7" colour touchscreen
- RFID and QR-code authentication
- Emergency stop and surge protection
- OCPP 1.6J / 2.0.1 over Ethernet, Wi-Fi or 4G
Best for: Car dealerships, hotels, retail car parks and depots that need DC charging without a large cabinet.
Certifications: IEC versions: CE, UKCA, TÜV. Certificates for the exact model on request.
Warranty: 2 years
DC fast charging in a wallbox format
Not every site needs — or can power — a 150 kW cabinet. The VT-DW brings DC charging to 20–60 kW in a unit that mounts on a wall or a slim pedestal. At 30 kW it adds around 45 kWh in about an hour and a half, which suits dealerships, hotels, supermarkets and fleet bays where vehicles park for one to two hours.
Single or dual connector
The 20, 30 and 40 kW models have one connector. The 40 and 60 kW dual models (VT-DW40-2, VT-DW60-2) have two CCS2 connectors for two vehicles. CCS1, CHAdeMO, NACS and GB/T connectors are available for other markets.
Choosing a power level
| Typical stay | Suggested model |
|---|---|
| 2–3 hours (hotels, offices) | VT-DW20 |
| 1–2 hours (retail, dealerships) | VT-DW30 or VT-DW40 |
| Two vehicles, shared bays | VT-DW40-2 or VT-DW60-2 |
Technical specifications
VT-DW DC Wallbox — 20–60 kW. Configurations can be customised for OEM orders.
Models
CCS2 shown; CCS1, CHAdeMO, NACS and GB/T connectors are available.
| Model | VT-DW20 | VT-DW30 | VT-DW40 | VT-DW40-2 | VT-DW60-2 |
|---|---|---|---|---|---|
| Max. output power | 20 kW | 30 kW | 40 kW | 40 kW | 60 kW |
| Input current per phase | 31 A | 47 A | 62 A | 62 A | 93 A |
| Max. output current | 66.5 A | 100 A | 133 A | 133 A | 200 A |
| Connectors | 1 × CCS2 | 1 × CCS2 | 1 × CCS2 | 2 × CCS2 | 2 × CCS2 |
| Dimensions (W × D × H) | 690 × 300 × 760 mm | 690 × 300 × 760 mm | 690 × 300 × 760 mm | 690 × 300 × 960 mm | 690 × 300 × 960 mm |
All models
- Input
- 230 / 400 V AC, 50/60 Hz
- Output voltage
- 200–1000 V DC
- Charging mode
- Mode 4 (DC)
- Efficiency
- ≥ 95.2 % at full load
- Voltage / current accuracy
- < ±0.5 % / < ±1 %
- Metering accuracy
- Class 0.5
- Ingress / impact protection
- IP54 · IK10
- Cooling
- Forced air
- Operating temperature
- −25 °C to +50 °C
- Noise
- < 65 dB
- Housing
- Sprayed stainless steel
- Interface
- 7" colour touchscreen, LED indicator, emergency stop
- Authentication
- RFID · QR code
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Design standards
- ISO 15118 · IEC 61851-1 · IEC 61851-23
Need a datasheet or a different configuration? Ask our engineers →
Features
DC without the cabinet
A wall-mounted DC charger needs no separate power cabinet — the power modules sit inside the unit.
Fits existing supplies
At 20–30 kW, the VT-DW runs on supplies that could never carry a 150 kW charger.
Driver-friendly
7-inch colour touchscreen, ambient lighting and an emergency stop button.
Operator-ready
OCPP 1.6J or 2.0.1, RFID and QR-code authorisation, with Ethernet as standard and Wi-Fi or 4G as options.
Installation requirements
- Wall mounting, or pedestal mounting for open car parks
- Three-phase 400 V supply; input current from 31 A (20 kW) to 93 A (60 kW) per phase
- Altitude up to 2,000 m; relative humidity 5–95 % non-condensing
Options
- Second connector (40 and 60 kW models)
- CCS1, CHAdeMO, NACS or GB/T connector
- 4G and Wi-Fi modules
- POS card payment
- C4 anti-corrosion finish
- Custom colours and logo (OEM)
Frequently asked questions
How long does a 30 kW DC wallbox take to charge a car?
Roughly 1.5 hours to add 45 kWh, assuming the vehicle accepts the full 30 kW. Use our charging calculator to compare power levels for your battery size.
Can the VT-DW charge two cars?
The VT-DW40-2 and VT-DW60-2 have two CCS2 connectors. The single-connector models are 20, 30 and 40 kW.
Which connectors are available?
CCS2 as standard, with CCS1, CHAdeMO, NACS and GB/T available for other markets.
Which certifications apply?
IEC versions are supplied with CE, UKCA and TÜV certification. We send the certificates for the exact model you order.
Get a quote for the VT-DW DC Wallbox
Tell us your market, the model or power you need, the quantity and any branding requirements. An engineer replies with specifications and pricing.
