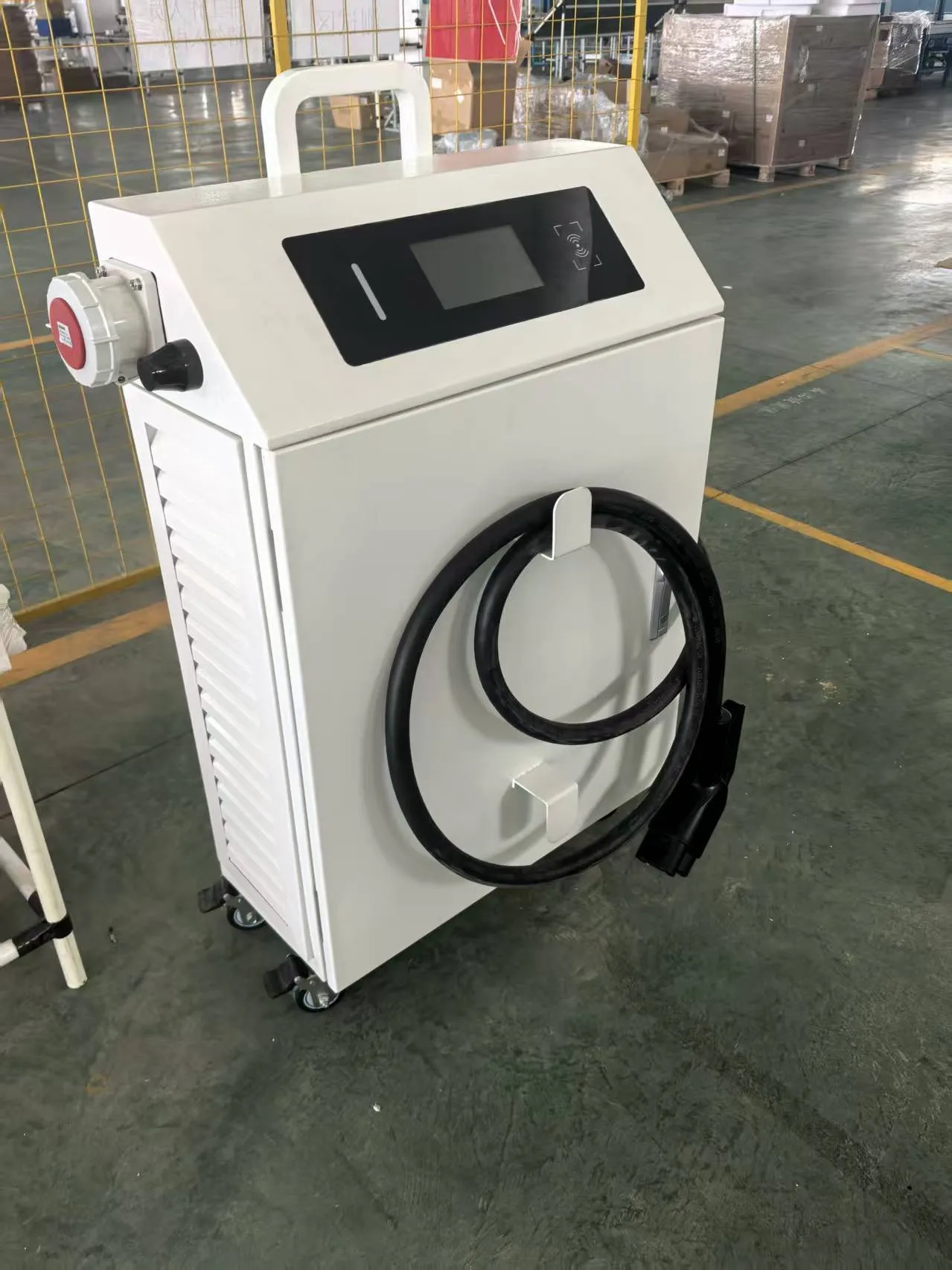

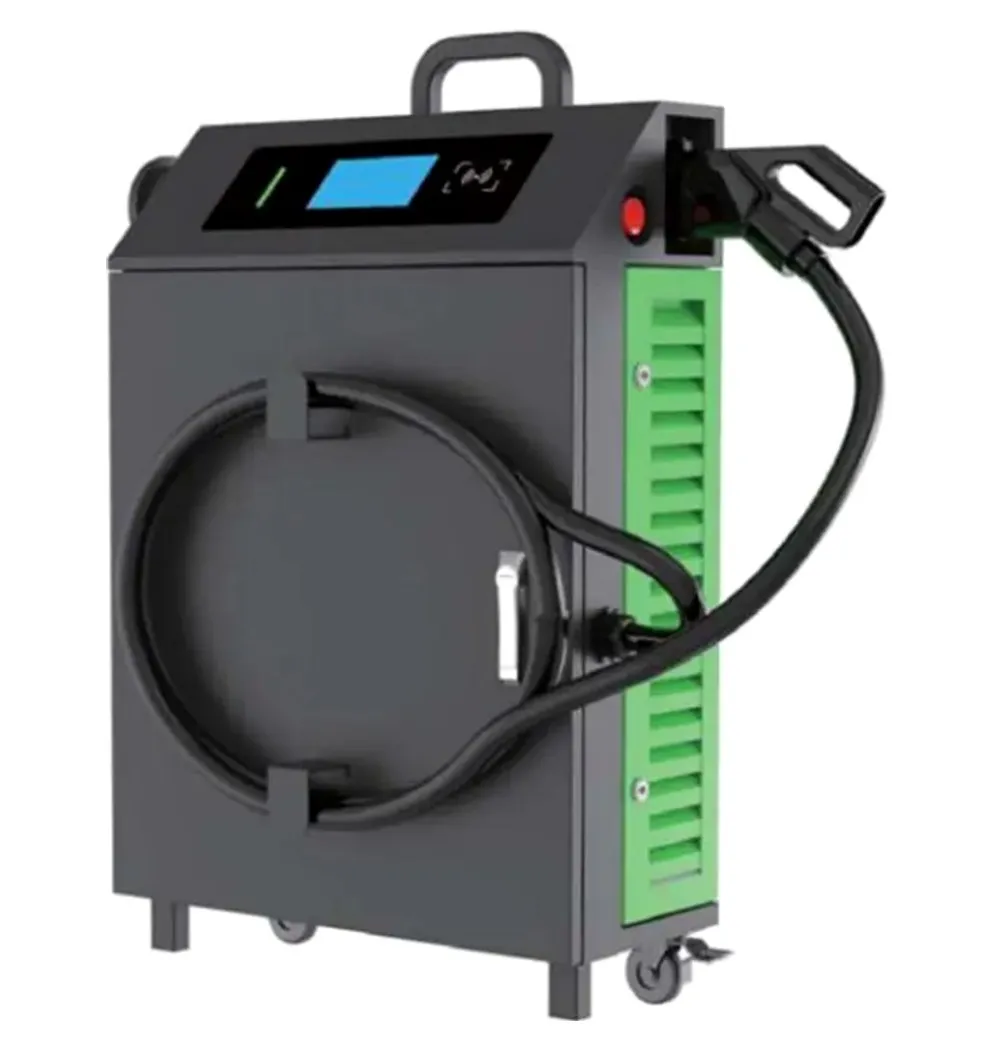

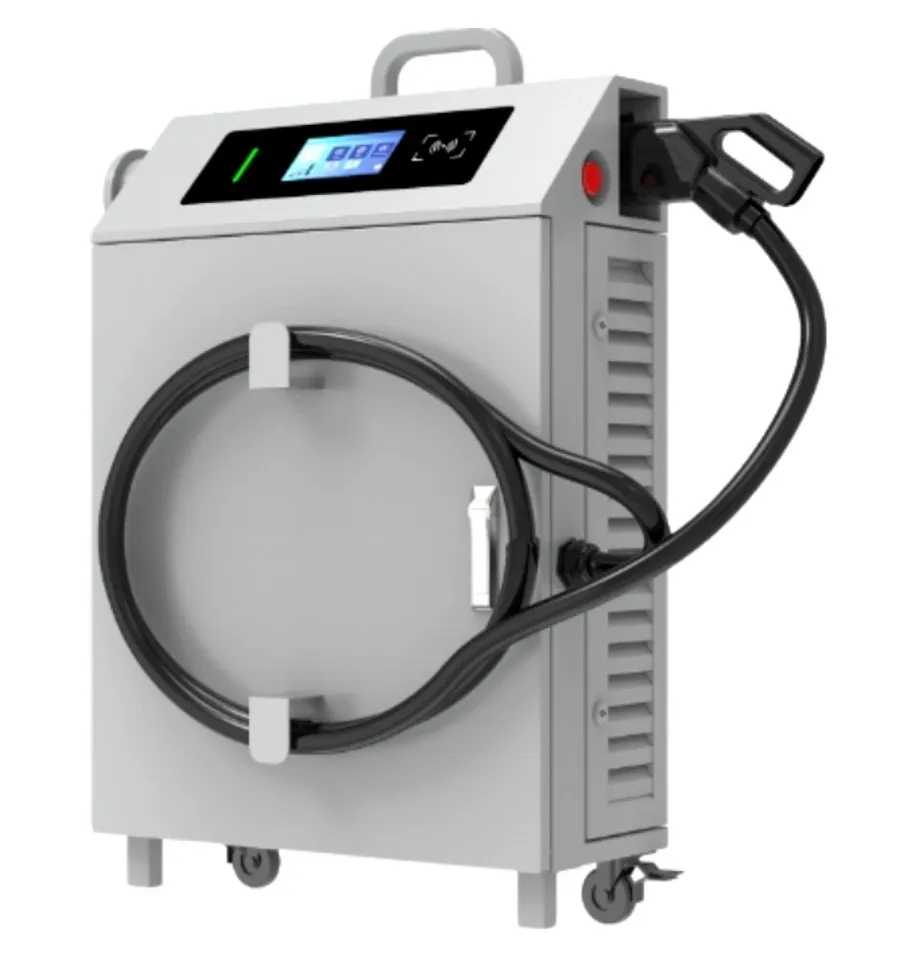

VT-DM Mobile DC Charger
A DC fast charger on wheels — 20 to 80 kW for roadside assistance, dealer service bays, events and temporary sites.
- Output power
- 20–80 kWOutput power
- Vehicle connector
- CCS1 · CCS2Vehicle connector
- DC output range
- 200–1000 VDC output range
- Outdoor use
- IP54Outdoor use
- 7" colour touchscreen
- Emergency stop button
- RFID and QR-code authentication
- Forced-air cooling
Best for: Dealers, service workshops, roadside assistance, event organisers and temporary charging sites.
Certifications: IEC versions: CE, UKCA, TÜV. Certificates for the exact model on request.
Warranty: 2 years
A fast charger you can move
The VT-DM puts a DC fast charger on wheels. Dealers use it to charge cars in the showroom and the delivery bay; workshops use it in service bays; event organisers and fleets use it for temporary sites. It runs from a three-phase supply point and delivers 20 to 80 kW of DC power.
Mobile, not battery-powered
The VT-DM does not carry its own battery — it needs a supply point. That keeps the unit compact and avoids the cost of a battery pack. Where there is no supply at all, a battery-based charging solution is a different product.
Which power level?
| Use | Suggested model |
|---|---|
| Dealer showroom, workshops | VT-DM20 – VT-DM30 |
| Fleet yards, events | VT-DM40 – VT-DM60 |
| Fast turnaround, larger batteries | VT-DM80 |
Technical specifications
VT-DM Mobile DC Charger — 20–80 kW. Configurations can be customised for OEM orders.
Models
CCS2 shown; CCS1 and other connectors are available.
| Model | VT-DM20 | VT-DM30 | VT-DM40 | VT-DM60 | VT-DM80 |
|---|---|---|---|---|---|
| Max. output power | 20 kW | 30 kW | 40 kW | 60 kW | 80 kW |
| Input current per phase | 31 A | 47 A | 62 A | 93 A | 124 A |
| Max. output current | 66.5 A | 100 A | 133 A | 200 A | 250 A |
All models
- Input
- 230 / 400 V AC, 50/60 Hz
- Output voltage
- 200–1000 V DC
- Charging mode
- Mode 4 (DC)
- Efficiency
- ≥ 95.2 % at full load
- Ingress / impact protection
- IP54 · IK10
- Operating temperature
- −25 °C to +50 °C
- Cooling
- Forced air
- Interface
- 7" colour touchscreen, LED indicator, emergency stop
- Authentication
- RFID · QR code
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
Need a datasheet or a different configuration? Ask our engineers →
Features
Charging where there is no charger
Wheel the charger to the car — in a workshop, a showroom, a car park or an event site.
Real DC power
20 to 80 kW from a three-phase supply, far faster than a portable AC charger.
Same interface as our fixed chargers
7-inch touchscreen, emergency stop, RFID and QR-code authorisation.
Fleet-friendly
OCPP 1.6J or 2.0.1 lets operators track every session.
Installation requirements
- Needs a three-phase 400 V supply point sized for the model (31–124 A per phase)
- Move on its wheels between bays; no foundation required
Options
- CCS1 or other connector types
- 4G and Wi-Fi modules
- Housing colour (white, grey, custom)
- Custom logo and packaging (OEM)
Frequently asked questions
Does the mobile charger have its own battery?
No. The VT-DM is a mobile charger that runs from a three-phase supply point. It moves on wheels between parking bays, workshops or event sites.
Which supply does the VT-DM need?
A three-phase 400 V supply. Input current ranges from 31 A per phase (20 kW) to 124 A per phase (80 kW).
Which certifications apply?
The VT-DM is supplied in IEC versions with CE, UKCA and TÜV certification. We send the certificates for the exact model you order.
Get a quote for the VT-DM Mobile DC Charger
Tell us your market, the model or power you need, the quantity and any branding requirements. An engineer replies with specifications and pricing.
